The new one gang floor  receptacle accepts one gang wallplate and provides connectivity for power or low voltage devices. The recessed box – 3 3/8” (86 mm) – is perfect for most concrete floor applications.

The stainless steel brushed cover has square edges and a clean look, perfect for modern, minimalist interior designs.
A subtle handle and a cable guard protects and reduce risk of damage to all outgoing cables.

The C01 floor box is ideal to conceal floor receptacles avoiding trip hazard, dust and damage to the receptacles.

Floor box suitable for use in concrete floors interior dry locations where the accumulation of scrub water is unlikely to occur.

Please see “Faceplates” and “Ordering instructions” for part numbers and details.

Trench ducts

Item

Floor Box

1 1/8" (156mm)

2/16" (4mm)

3 3/8" (86mm)

Cover

4 1/8" (156mm)

5 3/8" (136mm)

6 3/8" (136mm)

Width

Length

Height

Box dimensions

  • 6 Knockouts - Bottom: (1) 3/4" + (1) 1" KO's - Sides: (1) 3/4" KO per side - End wall: (1) 3/4" + (1) 1" KO's
  • Removable levelling bars for retrofit applications
  • Manufactured in compliance with UL514A Standard
  • Galvanized steel housing - 16 GA galvanized steel housing Gray Powder coating
  • Painted box offers a professional and aesthetic look.
  • Low Profile Shallow design (3 3/8'' depth)

Box features

Support documents

Installation guide

Minitower Installation guide

Catalog sheets

Minitower pole

Floor box covers

  • Contemporary look
  • Cable guard
  • Adjust to the final floor level
  • Handle
  • Brushed finish / Powder coated
  • Stainless steel / Steel / Brass
  • ADA Compliance
The C01 floor box is supplied as a kit which includes the floor box, cover and a temporary construction cover.

MPN: 11601

Duplex receptacle style for 15A and 20A duplex receptacles

Decorator style faceplate

MPN: 11612

Decorator style for 15A, 20A duplex receptables & keystone jacks

MPN: 11600

Blank faceplate - Cover unused compartments

Faceplates

For data and most AV keystone jacks use the faceplate #11612 and the keystone decorator insert DECF6W. Visit Connectivity Options page for details.

Ordering information

Sold as a kit (Includes box and cover). Faceplates and devices sold separately.

Kit
(Box + Cover)

C01 SFN

C01 BFN

C01 BFN

Cover color
Material

Stainless Steel

Brass

Brass

Cover
surface

Flat

Flat

Flat

Cover
edge

Square

Square

Square

Box
(Only)

FBSR01

Cover
(Only)

BC0SFN

BC0BFN

BC0BFN

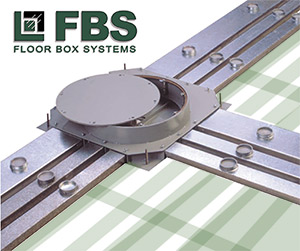

FBS Trench ducts

The underfloor duct system is the ideal solution for  projects
requiring underground wiring distribution with a large quantity
of cables and multiple service areas to access power and low
voltage outlets.

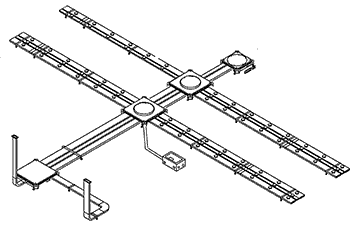

The FBS trunking system includes two different sizes of ducts
that can be combined to match the cable capacity required for
your project; junction boxes, duct supports, duct couplings and
several accessories complete the FBS underfloor system.

FBS manufactures a complete line of underfloor raceways and
fittings that are NRTL Listed and approved under spec C22-2
No 80 to both, Canadian & U.S. standards.

NOTE: The underfloor ducts are considered “Made to order” item.
Minimum order required. Lead time varies. Ask for details.

FBS Floor ducts

Support documents.

Catalogue sheets

Minitower pole

Installation guide

Minitower Installation guide

Features

  • NRTL Listed and approved for US and Canada.
  • Complete line of accessories
  • No weld construction
  • Three different ducts to combine in accordance to the project requirements
  • Galvanized steel
  • Quality products manufactured under strict quality standards to code compliance.
Download the FBS Underfloor duct system catalog for complete details.
