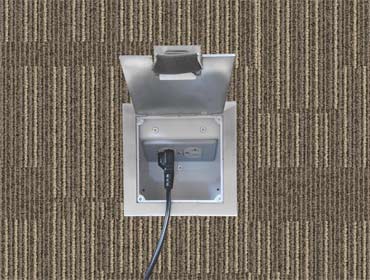

The R01 is our smallest recessed floor outlet that provides an unobtrusive and practical access to the power outlets.
It accepts one single faceplate for power or low voltage devices. The recessed box – 3 3/8” (86 mm) – is perfect for most raised floor applications.

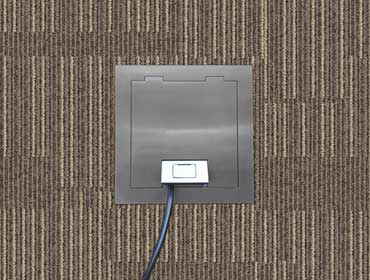

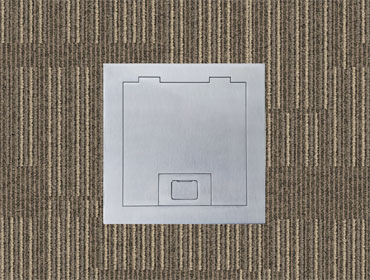

The stainless steel brushed cover has square edges and a clean look, perfect for modern, minimalist interior designs. A subtle handle and a cable guard protects and reduce risk of damage to all outgoing cables.
The R01 floor box is ideal to conceal floor receptacles avoiding trip hazard, dust and damage to the receptacles.
Floor box suitable for use in raised floors such as wood structured floors and raised access floors.
R01 one gang floor box outlet
Please see “Faceplates” and “Ordering instructions” for part numbers and details.
Item
Floor Box
5 3/8" (136mm)
5 3/8" (136mm)
3 3/8" (86mm)
Cover
6 1/8" (156mm)
6 1/8" (156mm)
3/16" (4mm)
Width
Length
Height
Box dimensions
- 6 Knockouts - Bottom: (1) 3/4" + (1) 1" KO's - Sides: (1) 3/4" KO per side - End wall: (1) 3/4" + (1) 1" KO's
- Removable levelling bars for retrofit applications
- Manufactured in compliance with UL514A Standard
- Galvanized steel housing - 16 GA galvanized steel housing Gray Powder coating
- Painted box offers a professional and aesthetic look.
- Low Profile Shallow design (3 3/8'' depth)
Box features
Floor box covers
The R01 floor box is supplied as a kit which includes the floor box, cover and a temporary construction cover.
- Contemporary look
- Adjust to the final floor level
- Brushed finish / Powder coated
- Stainless steel / Steel / Brass
- Cable guard
- Handle
- ADA Compliance
MPN: 11601
Duplex receptacle style for 15A and 20A duplex receptacles
MPN: 11612
Decorator style for 15A, 20A duplex receptables & keystone jacks
MPN: 11600
Blank faceplate - Cover unused compartments
Faceplates
For data and most AV keystone jacks use the faceplate #11612 and the keystone decorator insert DECF6W. Visit Connectivity Options page for details.
Ordering information
Sold as a kit (Includes box and cover). Faceplates and devices sold separately.
For complete part numbers and details please download the following chart.
Kit Box + Cover
R01SFN
R01BFN
R01PFN
Cover Color
S. Steel

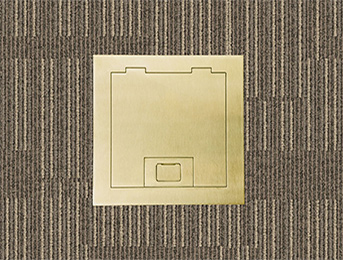

Brass
Black
Cover Surface
Flat
Flat
Flat
Cover Edge
Square
Square
Square
Floor Box (Only)
FBSR01
FBSR01
FBSR01
Cover (Only)
BC0SFN
BC0BFN
BC0PFN
